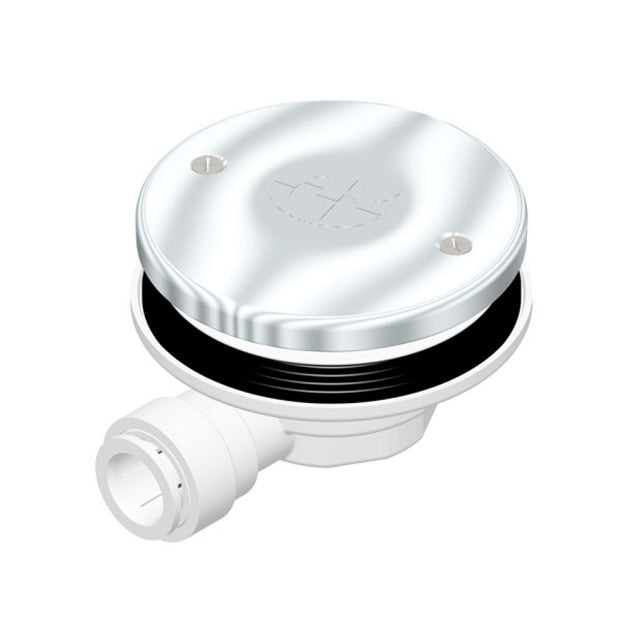

PW90 90mm diameter pumped waste

Specially designed shallow pump gulley (for Mullen tray) with two baffle features that help to reduce the noise during showering cycles.

• Good seals & location
• Built-in filter
• Opens for easy cleaning and rodding
• 36mm deep below mounting surface
• Overall depth 58mm
• 22mm option available SKU: 25406
• 15mm & 22mm John Guest Speed-Fit outlets available

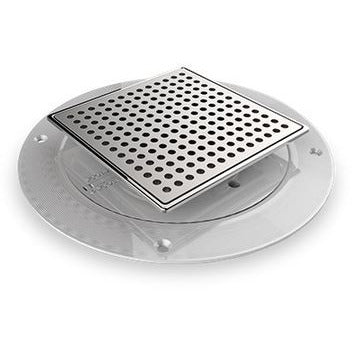

Stainless Steel TFWA Waste (inc. GW19 Trapped Waste)

• For use with Tuff Form former when tiling
• Stainless steel plate dimensions = 120 x 120mm
• Stainless steel plate height is adjustable from 6mm to max of 18mm
• Depth below tray - 97mm
• Overall depth - 128mm
• 50mm version available
• Included in this product are the 19mm waste and stainless steel waste adaptor

• Top access 50mm water trap depth (seal) - Can be easily removed for cleaning


• Built in strainer - Catches hair and debris which can be removed for cleaning

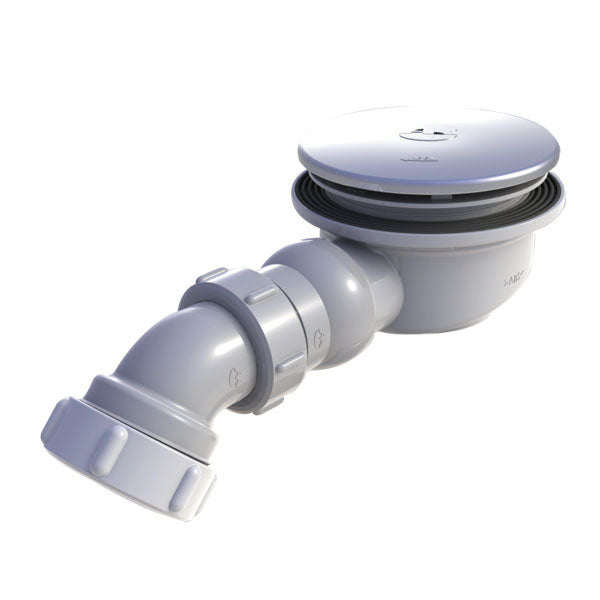

• Depth below tray 60mm, overall depth 82mm - Low depth gravity waste particularly ideal for Sulby 2, Low Profile and Mullen trays on wooden floor installations


• Opens for easy cleaning and rodding - Ensuring easy maintenance


• Compatible with Tuff Form - Can be specified with the Tuff Form waste adaptor for a low depth gravity waste option


• Good seals and location - For easy installation and watertight fitting


• Low maintenance & reliable operation - Provides peace of mind


• Unique swivel outlet for quick and easy installation - Designed for ease of installation and flexibility of fitting

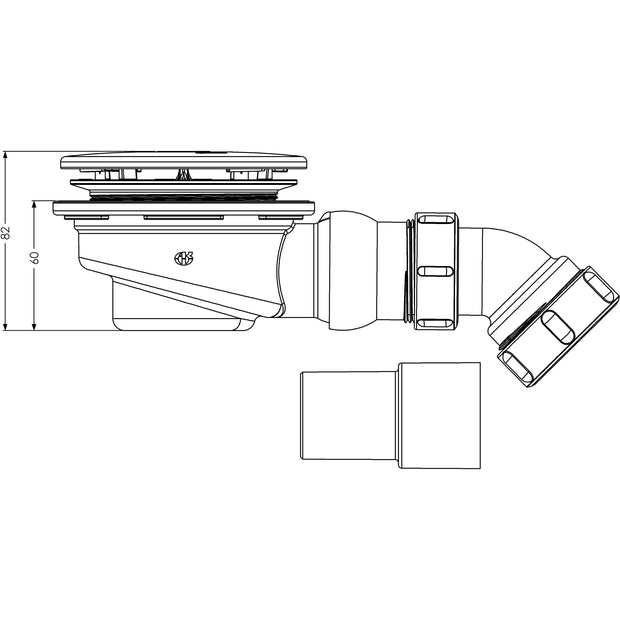

Depth below tray 60mm, overall depth 82mm
Unique swivel outlet for quick and easy installation
50mm water trap depth (seal)
Opens for easy cleaning
Built in filter
Approximate flow rate 14 litres per minute
Suitable for use with Tuff Form for vinyl wet room floor installations if fitted in conjunction with the Tuff Form waste adaptor, SKU: 25409

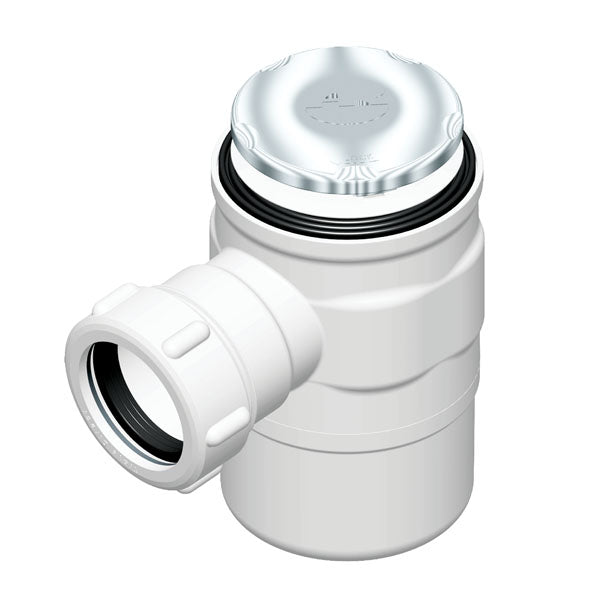

• 50mm threaded waste fitting - Compatible with the majority of AKW shower trays and Formers


• 93mm deep below mounting surface (19mm water trap) - 50mm threaded gravity waste particularly ideal for wooden floor installations


• Built in strainer - Catches hair and debris which can be removed for cleaning


• Good seals and location - For easy installation and watertight fitting


• 19mm water trap depth (seal) - Prevents bad odour backflow

Good seals and location
Built in filter
50mm threaded waste fitting
Depth below tray 93mm
Overall depth 113mm
Also available in 50mm option

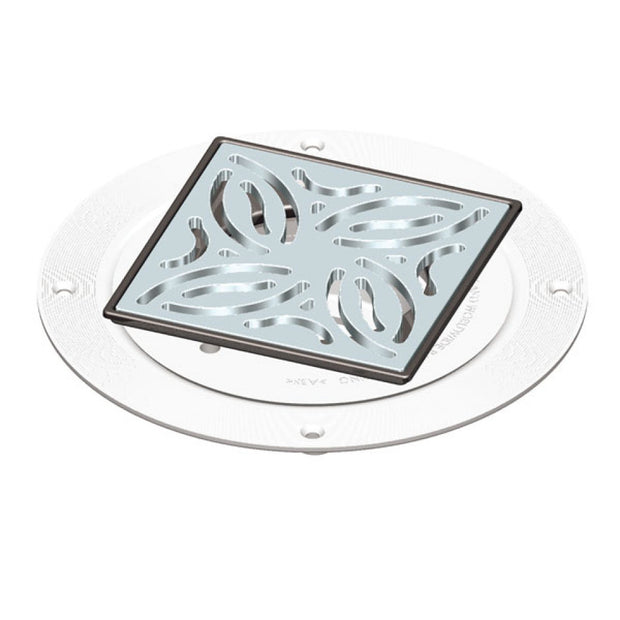

• For use with vinyl only - Designed to trap vinyl flooring in place maintaining a watertight installation


• Compatible with GW50 and GW19 waste, adaptor included when either waste purchased - Provides alternatives to accommodate site requirements


• Designed for adaptability - Offers specifiers a Bathroom for Life solution

For use with DuraForm and SureForm
