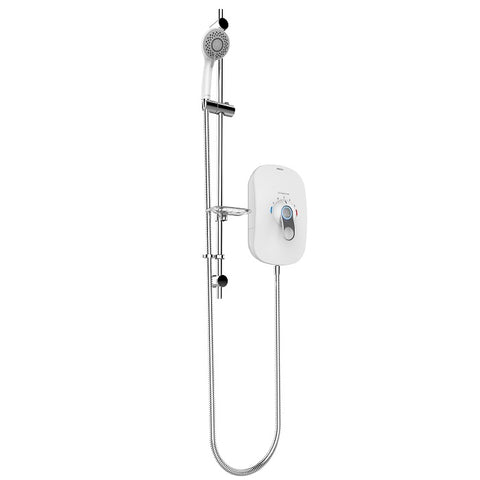

AKW SmartCare Lever Shower 9.5kw with silver/white kit
Regular price £399.99 Save Liquid error (snippets/product-template line 120): Computation results in '-Infinity'%/
Shipping calculated at checkout.
Out of stock
-
Matt anti-glare finish - Designed to reduce glare for users with dementia
-
Retro-fit footprint covers most manufacturers’ models - Can replace most manufacturers models without having to re-tile by using existing cables and pipework saving time on installation
-
Rounded surfaces and edges - Reduces risk of injury in light of a fall
-
Thermostatic control and phased/auto shutdown - Ensures safety from scalding and potential flooding if the shower is left running
-
Audible temperature control clicks - Designed to aid users with sight loss or visual impairment
-
Easy to use Lever Handle - Easy one handed operation for quick adjustment to suit users requirements
-
BEAB Care Certified -
-
Standard Kit: 2m anti-kink smooth hose, 1m riser rail, easy adjust shower head - Easily adjustable shower head for multi user but also removable for a carer
-
Patented Safety Features - Especially useful for assisted showering
-
9.5kw option - Increased power solution for user preference
|
Plumbing Supply

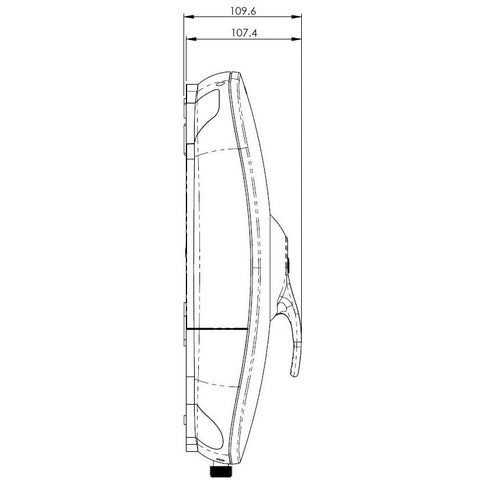

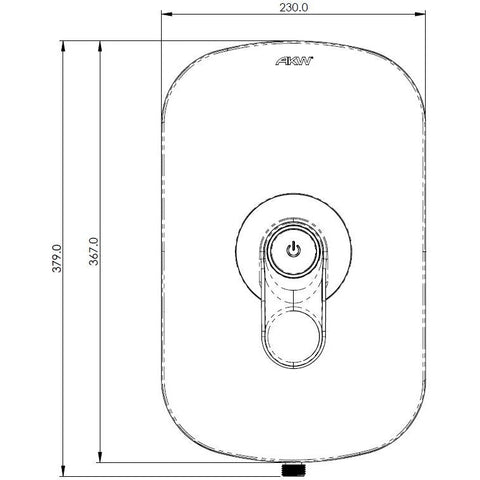

Supply Source: Mains pressure cold water only Minimum Dynamic Pressure: 50kPa (0.5 Bar) Maximum Static Pressure: 1000kPa (10 Bar) Optimal Minimum Dynamic Pressure: 100kPa (1 Bar) (Recommended to ensure high performance) Maximum Inlet Temperature: 28°C Minimum Inlet Temperature: 2°C Inlet Connection: 15mm pipe Outlet Connection: 1/2” BSP Male Thread Fitting Water Ingress Rating: IPX4 Shower Drain Pump Connections: Suitable for AKW M Series (Internal flow sensor or wireless) Electricity Supply Nominal Rating at 240 V: 9.5kW & 8.5kW Supply Fuse / Circuit Breaker: (9.5kW 40/45A) & (8.5kW 35/40A) Residual Current Device (RCD): 30 mA (must be fitted) Supply Cable: Refer to current wiring regulations and BS 7671 to determine minimum cable size. No larger than 10mm2 Isolation Switch (e.g. Pull Cord): 45 Amp Double pole Water and Cable Entry Points: Top, bottom or back Physical Height (H): 380mm Width (W): 230mm Depth (D): 85mm Footprint Height (H2): 345mm Footprint Width (W2): 210mm Water and Cable Entry Points: Top, bottom or back Shower Drain Pump Connections: Suitable for AKW M Series (flow sensor or wireless), D4 (Flow Sensor) or AKW A4 (Flow Switch) |
